Remap IO to enable passive population option #1

New Issue
Open
opened 2025-06-26 21:16:12 -06:00 by brendanhaines · 0 comments
brendanhaines commented 2025-06-26 21:16:12 -06:00
Owner
Copy Link

Full board can control 3x SP16T (or any 3 devices with 4 inputs).

I had issues buying these ADCs so I wanted to be able to just skip them and control 3 SPDTs.

I white wired this on one PCB, only connecting a single IO to D1 (not D0) of each output connector.

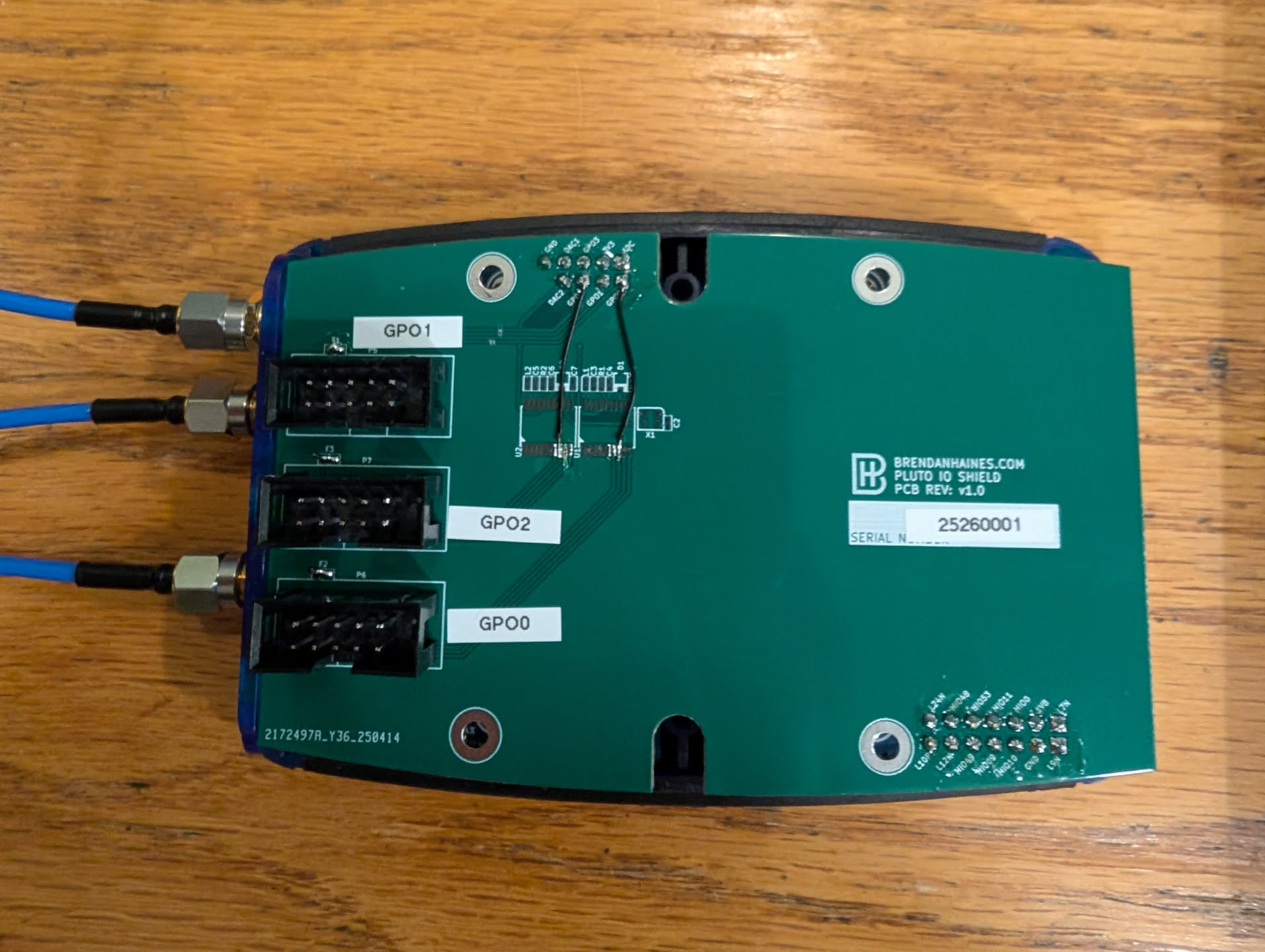

Full board can control 3x SP16T (or any 3 devices with 4 inputs). I had issues buying these ADCs so I wanted to be able to just skip them and control 3 SPDTs. I white wired this on one PCB, only connecting a single IO to `D1` (not `D0`) of each output connector. ![image.png](/attachments/d2abca83-aa20-4ff6-b967-2ce846b8e5bb)
